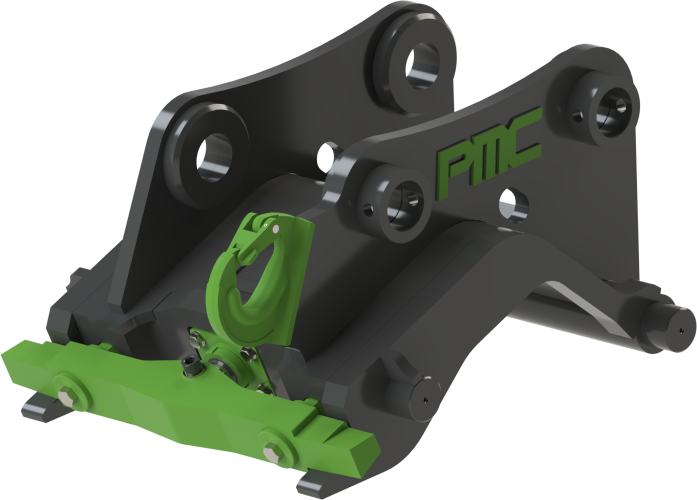

CW-standard kiirkinnitused
Beställ nu

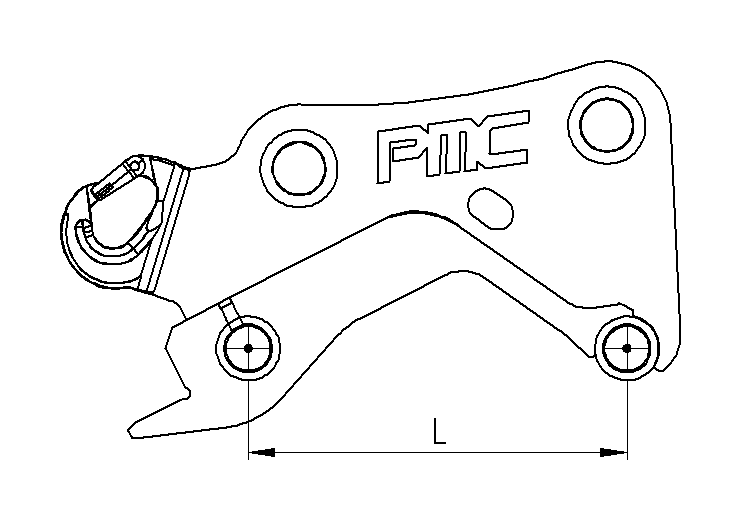

| Produktkod | Coupler | Reccomended machine weight (t) | A (mm) | L (mm) | Locking system | Lifting hook capacity | Weight | |
|---|---|---|---|---|---|---|---|---|
| SQC.CW20.H | CW20 | 10-15t | 550 | 475 | Hydraulic | 5000 kg | xxx kg | |
| SQC.CW20S.H | CW20S | 10-15t | 420 | 475 | Hydraulic | 5000 kg | xxx kg | |
| SQC.CW30.H | CW30 | 15-21t | 550 | 475 | Hydraulic | 5000 kg | 215 kg | SQC.CW30.H-Info.pdf |
| SQC.CW30S.H | CW30S | 15-21t | 420 | 475 | Hydraulic | 5000 kg | xxx kg | |
| SQC.CW.40.H | CW40 | 21-28t | 550 | 475 | Hydraulic | 8000 kg | 240 kg | SQC.CW40.H-Info.pdf |
| SQC.CW40S.H | CW40S | 21-28t | 420 | 475 | Hydraulic | 8000 kg | xxx kg |
